Winding Technology – Precision That Makes the Difference

Winding technology is a key component of modern production processes—especially in the wire and cable industry, where the highest standards of quality, consistency, and process reliability are required. As a specialist in special-purpose machinery and plant engineering, we develop and implement customized solutions precisely tailored to the individual requirements of our customers.

Our winding systems stand for precise guidance, controlled tension, and reproducible results—whether for fine wires, complex cable structures, or demanding special applications. We combine in-depth expertise with practical engineering and well-thought-out manufacturing to ensure durable, low-maintenance systems.

From the initial concept idea through design and all the way to commissioning, we support our customers as a reliable and solution-oriented partner. We optimize and modernize existing systems just as effectively as we develop and build completely new ones. Our focus is always on efficiency, reliability, and seamless integration into existing production environments.

With our experience in winding technology, we create solutions that are not only technically impressive but also economically sustainable.

Individual Solutions Instead of Standard Machines – the following examples provide an insight into typical configurations and technical parameters of our winding systems.


Each system is designed individually according to customer requirements, so the specified data should be understood as guideline values. A detailed overview of possible variants and options can be found in the section below.


Topfwickler Typ: HTWH 400

Wickelware:
Wickelgeschwindigkeit:
Durchmesser:
Fassaußen-Ø:
Fasskern-Ø:
Fasshöhe:
Draht / Ader
30 - 120 m/min
0,5 - 2,0 mm
500 - 635 mm
300 - 380 mm
800

Statikwickler Typ: A-470-T

Wickelware:
Wickelgeschwindigkeit:
Querschnitt:
Fassaußen-Ø:
Fasskern-Ø:
Fasshöhe:
Draht / Ader
400 - 1200 m/min
0,35 - 6,0 mm²
584 mm
355 mm
1100


Statikwickler Typ: D-480-TS

Wickelware:
Wickelgeschwindigkeit:
Durchmesser:
Fassaußen-Ø:
Fasskern-Ø:
Fasshöhe:
Draht
2100 m/min
0,35 - 1,2 mm
585 mm
375 mm
1310

Statikwickler Typ: VD-650-Sn-TT

Drahtdurchmesser: min. 0,5 – max 2,0 mm
Wickelgeschwindigkeit: 30 – 120 m/min
Fassgrößen: Außendurchmesser : 500-635 mm
Kerndurchmesser : 300-380 mm
Höhe : max. 800 mm
Wickelscheibenanzahl: 1
Wickelscheibendurchmesser: 400 mm

Einzelantriebe mit Regelstufe für die Wickelscheibe und dem Drehteller – somit optimale Korrektur der Verlegequalität bei Dimensionswechsel und unterschiedlichen Fassgrößen


Statikwickler Typ: A-1050-T

Drahtdurchmesser: min. 0,5 – max 2,0 mm
Wickelgeschwindigkeit: 30 – 120 m/min
Fassgrößen: Außendurchmesser : 500-635 mm
Kerndurchmesser : 300-380 mm
Höhe : max. 800 mm
Wickelscheibenanzahl: 1
Wickelscheibendurchmesser: 400 mm

Einzelantriebe mit Regelstufe für die Wickelscheibe und dem Drehteller – somit optimale Korrektur der Verlegequalität bei Dimensionswechsel und unterschiedlichen Fassgrößen

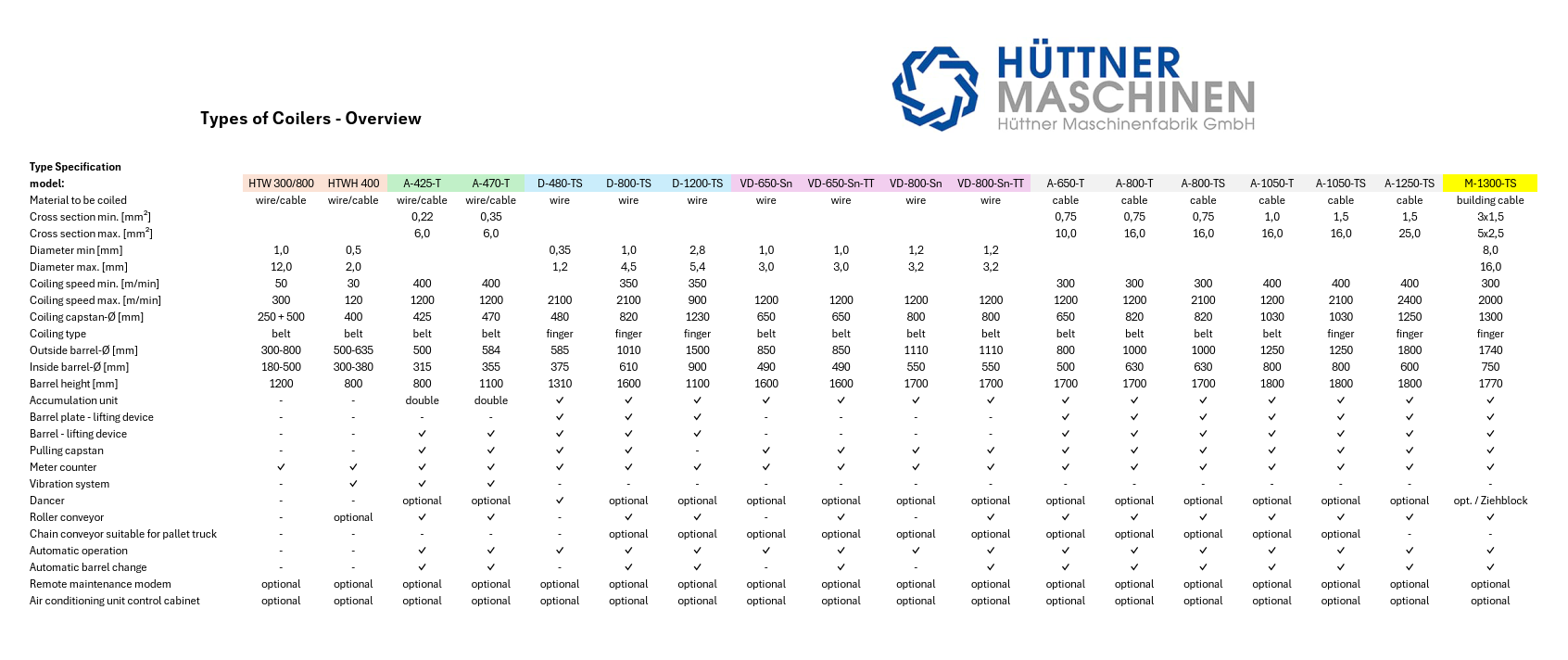

Alle Wickelsysteme, Varianten und Optionen im Überblick.

Sie benötigen mehr Informationen?

Zögern Sie nicht uns zu kontaktieren, wir helfen gerne weiter!
Kontakt aufnehmen
